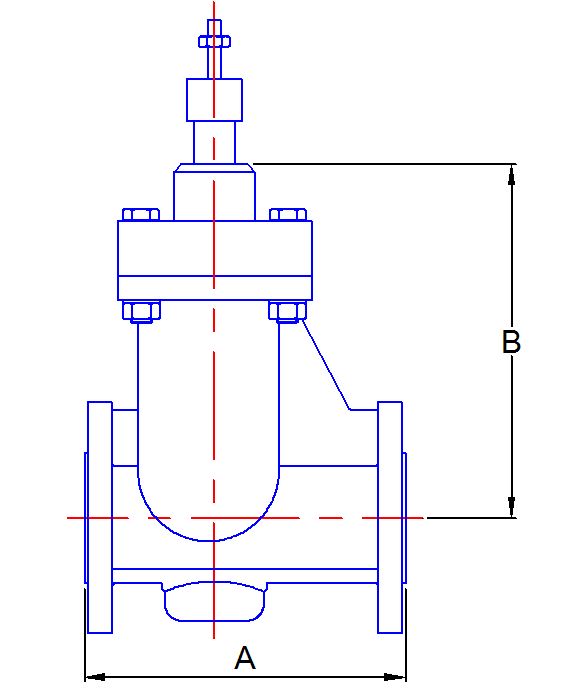

Dimensional drawing for the PFA lined Kammer control valve
Dimensions to suit ASME 150 and DIN PN 10/16 flanged piping systems.
| To suit pipework NB | ‘A’ ASME 150 | ‘A’ DIN PN10/16 | ‘B’ |
|---|---|---|---|
| Inches | Inches | Inches | Inches |
| 1/2″ | 5.1 | 5.1 | 7.3 |
| 3/4″ | 5.9 | 5.1 | 7.3 |
| 1″ | 7.2 | 6.3 | 9.4 |
| 1.1/2″ | 8.7 | 7.9 | 9.6 |
| 2″ | 10.0 | 9.1 | 9.8 |
| 3″ | 11.7 | 12.2 | 15.7 |
| 4″ | 13.8 | 13.8 | 17.7 |
| 6″ | 18.9 | 18.9 | 18.5 |
