Level Gauges
Produced using PFA lined stainless steel pipe, the LGSG level gauge features slots along the length of the pipe that allow personnel to view the level of liquid in a storage vessel. A very robust design, the level guage stands strong against knocks and bangs that can be damaging for other types of site gauge. PFA is the only wetted part, meaning it’s suitable for use when working with highly corrosive material, and thanks to it’s non-stick attributes, sticky applications. Gauges are available in 1”, 1.1/2” and 2”NB in any length up to 20′ long to suit the application. They can also withstand temperatures of up to 302°F.
Level gauges can also be supplied with a pair of flat traps and floating hollow PTFE ball, perfect for use in scenarios where viewing needs to be done from a distance.

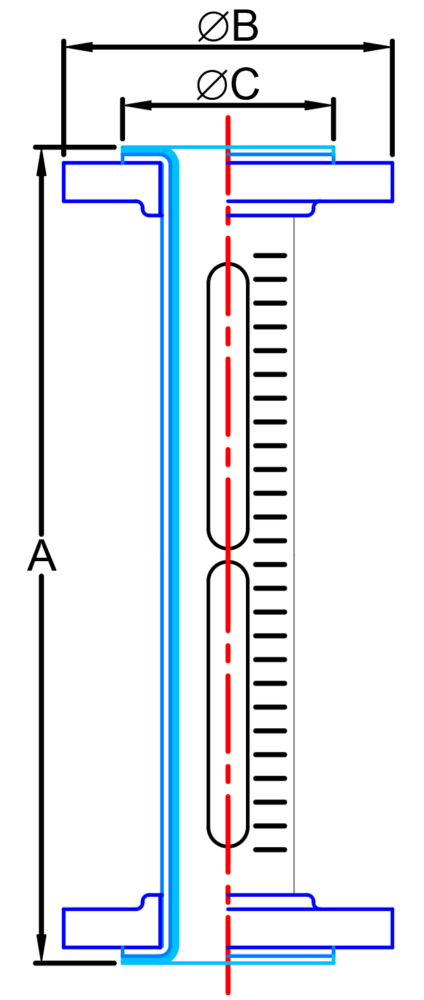

| Dimensions | ||||||
|---|---|---|---|---|---|---|
| To Suit Pipework | Face – Face | Flange ø | Raised Face ø | Weight 3′ lg. | Liner Thickness | |
| Inches | Dim. A In. | Dim. B In. | Dim. C In. | Lbs | In. | |
| 1 | 10″ – 20′ | 4.33 | 2.01 | 12.7 | 0.12 | |
| 1 1/2 | 10″ – 20′ | 4.92 | 2.87 | 19.8 | 0.12 | |
| 2 | 10″ – 20′ | 5.91 | 3.61 | 27.5 | 0.12 | |
