Lined Piping Pressure / Temperature Curve

For the pressure and temperature performance of CRP’s lined pipe and fittings, view the graphs below.

Scroll further down the page to see details on vacuum performance.

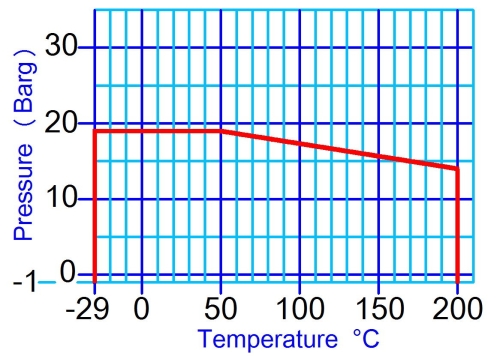

ASME 150 Flanged Piping Systems Pressure & Temperature
Pressure / Tempertaure Chart ASME150

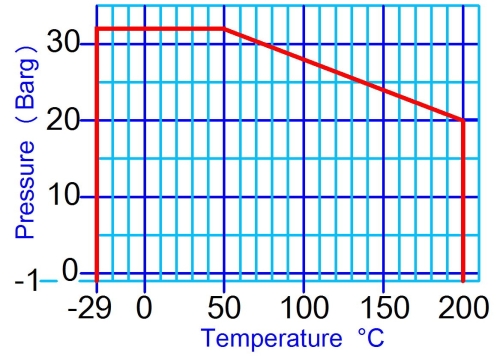

ASME 300 Flanged Piping Systems Pressure & Temperature
Pressure / Temperature Curve ASME300

Vacuum performance of CRP heavy duty PTFE & PFA lined piping systems.

  • 1/2″NB – 8″NB suitable for use under full vacuum to 392º F.
  • 10″ NB  – 12″NB  suitable for use under full vacuum to 302º F.
  • 14″ NB –  Suitable for use under full vacuum to 122º F.
  • With 10″NB – 12″NB lined piping the vacuum resistance drops by 0.725 PSI per 50ºF increase in temperature between 302º F and 392º F. Which means -12.32 PSI (2.17 PSI abs.) at 356°F and -10.87 PSI (3.625 PSI abs.) at 392°F
